This instruction sheet is now complete. I hope somebody finds the information useful.
All the information below this line is copied from ALLDATA exactly as it appears at their site.
Air Inlet Actuator Replacement
REMOVAL PROCEDURE
1. Remove the IP compartment.
2. Remove the right sound insulator.
3. Remove the Dash Integration Module (DIM) from the bracket.
4. Remove the rear two DIM module bracket screws.
5. Reposition the DIM module bracket to gain access to the air inlet actuator.
6. Remove the electrical connector from the air inlet actuator.
7. Remove the air inlet actuator retaining screws.

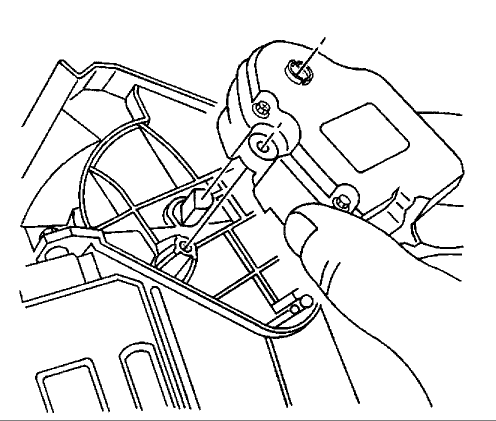

8. Remove the air inlet actuator.
INSTALLATION PROCEDURE
1. Install the air inlet actuator. NOTE: Refer to Fastener Notice in Service Precautions.

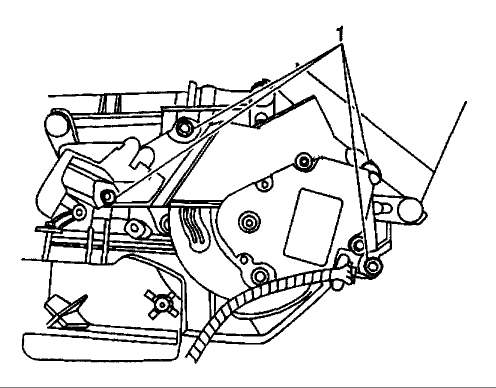

2. Install the air inlet actuator retaining screws (1). Tighten Tighten the fasteners to 1.4 N.m (12 lb in) .
3. Install the electrical connector to the air inlet actuator.
4. Position the DIM module bracket to its original position.
5. Install the rear two DIM module bracket retaining screws. Tighten Tighten the fasteners to 1.4 N.m (12 lb in) .
6. Install the DIM module into the bracket.
7. Install the right sound insulator.
8. Install the IP compartment.
All the information below this line is copied from ALLDATA exactly as it appears at their site.
Air Inlet Actuator Replacement
REMOVAL PROCEDURE

1. Remove the IP compartment.
2. Remove the right sound insulator.
3. Remove the Dash Integration Module (DIM) from the bracket.
4. Remove the rear two DIM module bracket screws.
5. Reposition the DIM module bracket to gain access to the air inlet actuator.
6. Remove the electrical connector from the air inlet actuator.
7. Remove the air inlet actuator retaining screws.

8. Remove the air inlet actuator.
INSTALLATION PROCEDURE

1. Install the air inlet actuator. NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the air inlet actuator retaining screws (1). Tighten Tighten the fasteners to 1.4 N.m (12 lb in) .
3. Install the electrical connector to the air inlet actuator.

4. Position the DIM module bracket to its original position.
5. Install the rear two DIM module bracket retaining screws. Tighten Tighten the fasteners to 1.4 N.m (12 lb in) .
6. Install the DIM module into the bracket.
7. Install the right sound insulator.
8. Install the IP compartment.
