Installation of LED/Turn Signal Fog Lamps for GS

wierz11

Full Member
796
9
0
AZ
Buick Ownership
E92 M3, E46 330, E24 635CSi
This thread will show the installation of the DRL/LED turn signals, shown in this link. Shipping from China took 1 week to the Milwaukee metro area in SE WI. Some drilling is required with this project.

Time:
3 hours (no knowledge), 1 hour (with knowledge).

Difficulty:
Easy

Tools:
  • Torx tool/bit, size T-15
  • 3/16" drill bit & power drill
  • 10mm socket & socket wrench
  • Box cutter/sharp blade
  • Double-sided tape (optional)
  • Hot glue
  • Electrical tape
  • Duct tape

Unboxing

The box itself

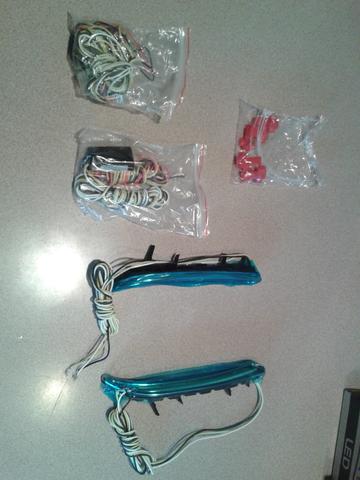

Everything out, the lights are covered in protective blue plastic

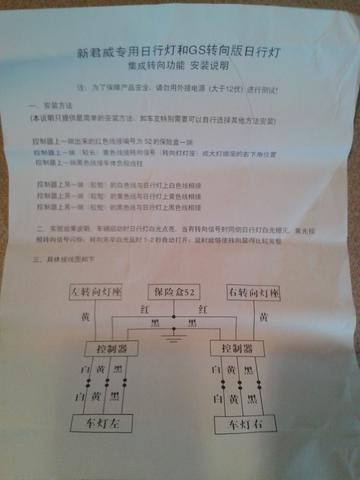

Boy, this sure helps. Luckily my phone is able to translate text, so I was able to decipher some, but it didn't help much.


You can see the quality of the lights in this picture. The chrome bezel around the light is held on by double-sided tape. I had to press and hold the bezel to make sure they would stay. I may remove them later and paint them the flat silver that is around the air intake "fangs" so they would match.

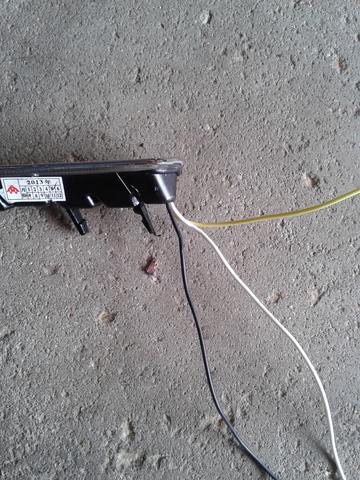

The wires coming out of the light.

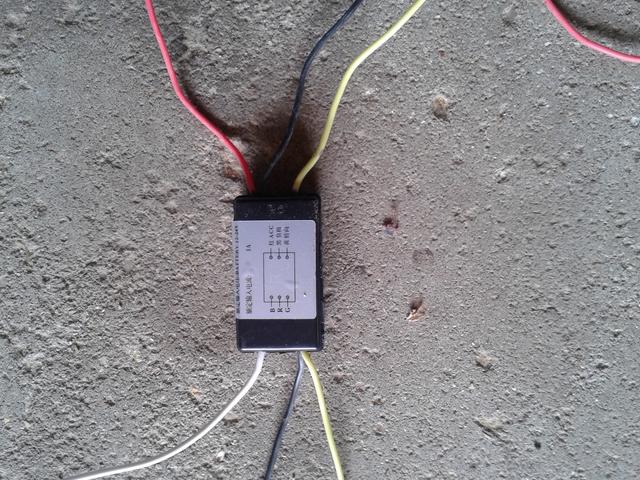

The wires coming out of the "black box" controller. Match the white, black, and yellow from the light to the white, black, and yellow of the black box. Red = ACC, Yellow = Turn Signal, Black = Ground.


Steps

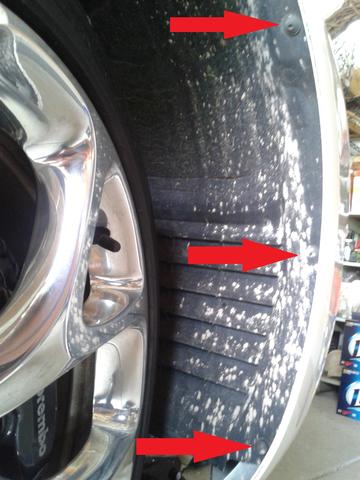

1) Place the front end of the car up on jack stands. Turn the wheel so you have access to the wheel well which you are working on. There are 3 T-15 torx screws that need to be removed to have access to behind the bumper.

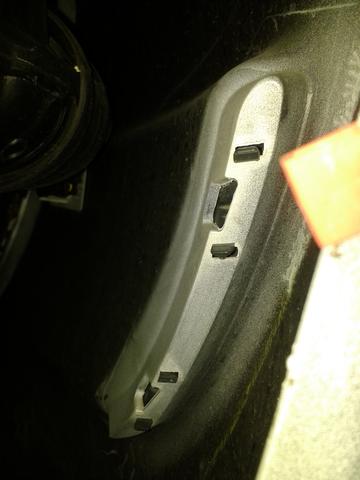

2) Pushing the wheel well aside, you now have access to the tabs of the plastic fake vent. These tabs were EXTREMELY hard to move (you are supposed to squeeze the top two and bottom two together, and push out), so I ended up breaking the top three off and removing the vent. I figured if I ever want to put it back it, I can glue it back in/get a replacement.

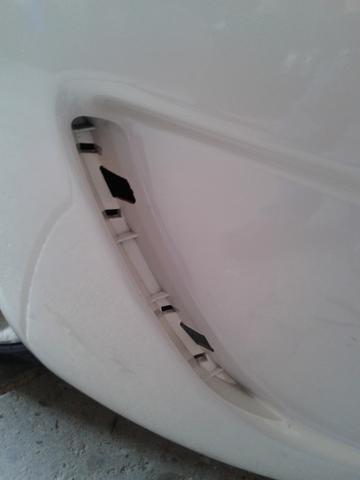

3) Remove the plastic vent, and clean the area.

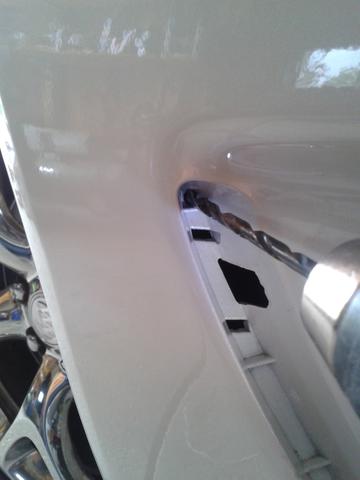

4) Using a 3/16" drill bit, drill a hole at the top of the indent where the black plastic vent used to be. This is where you will feed the wires through.


5) Install the light. The light will not seat completely in the indent. Push it is as far as possible. Use hot glue on all four tabs, and on the hole where the wires came through. This will prevent it from falling out.

6) Drop the white, yellow, and black wires down into the engine bay from the black box. I snaked mine along the front of the frame next to the intercooler. I wanted to keep them as far out of sight as possible. I used hot glue to mount the black box to the frame, out of sight, or you can use double-sided tape.

7) Connect the white, yellow, and black wires from the light to the black box. Any extra wiring I bundled up, zip tied, and duct taped it to the inside of the bumper. Reinstall the torx screws in the wheel well.

NOTE: The next two steps are only if you want the fog lamps to flash yellow when the turn signal is activated; I ended up not doing it because of personal preference.

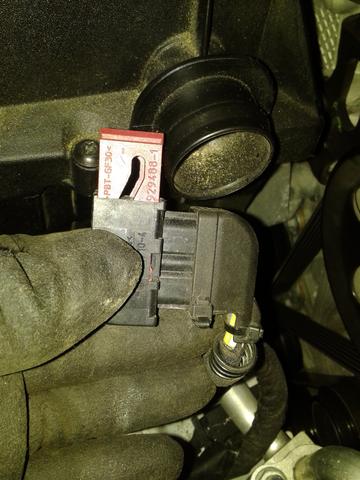

8) Remove the wiring going to the headlamp. Pull up on the red piece surrounding the harness, and pull the harness out.

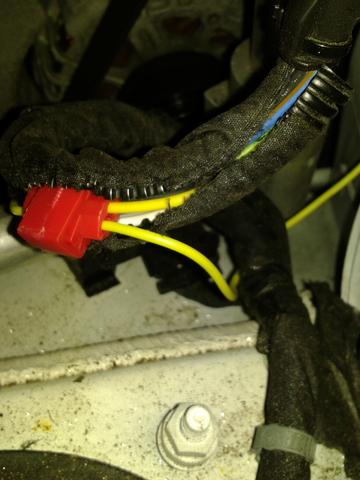

9) Cut open the tubing to expose the wires leading to the headlamp. The yellow wire is the turn signal wire, which we will be tapping into. Use the supplied wire tap (or I recommend actually cutting and splicing into the wire using solder, much more secure) to tap the yellow wire from the red-black-yellow group from the black box. Retape the wire tubing back up with electrical wire.

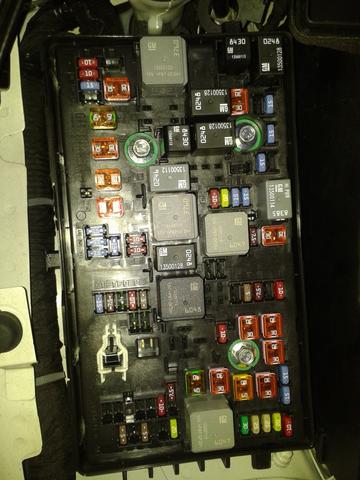

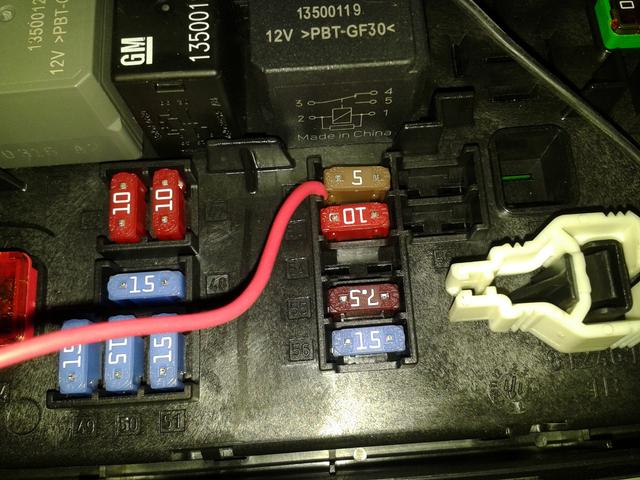

10) Open the fuse box, which is located next to the battery in the right-hand side of the engine bay. We will be tapping into fuse 52 (5 amp fuse). Attach the red ACC wire into fuse slot 52.



11) Find any bolt that is attached to the frame, and attach the black wire to it. This is the ground. This picture shows me just testing the setup to ensure ground was made, I secured it correctly later on.

Last edited:

wierz11

Full Member
796
9
0
AZ
Buick Ownership
E92 M3, E46 330, E24 635CSi

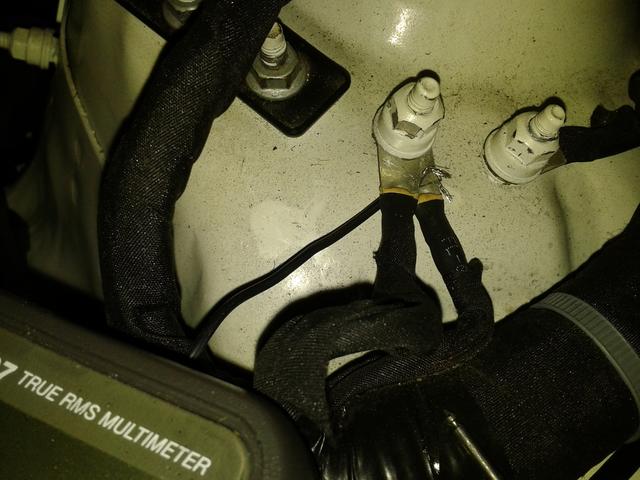

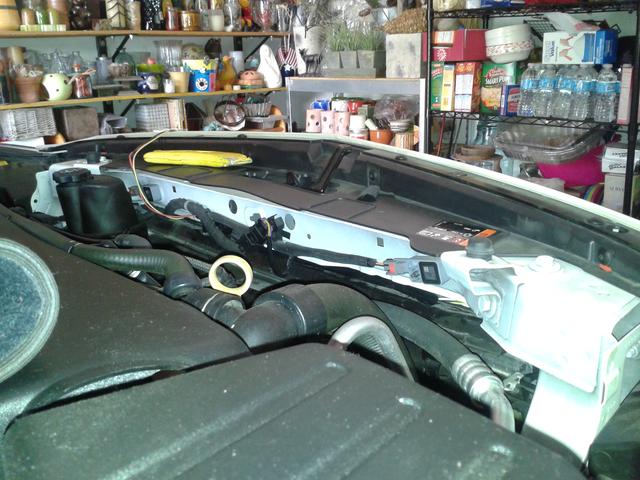

12) Clean up the wires in your engine bay. Here is an example of my engine bay midway through the install. I have absolutely NO wires showing, everything is hidden underneath the wire tubing connected to the frame and covered in black electrical tape to hide the colors.

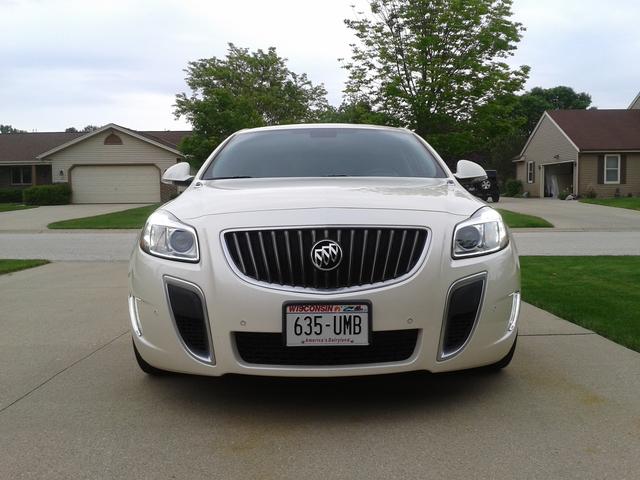

Below are pictures of the final product

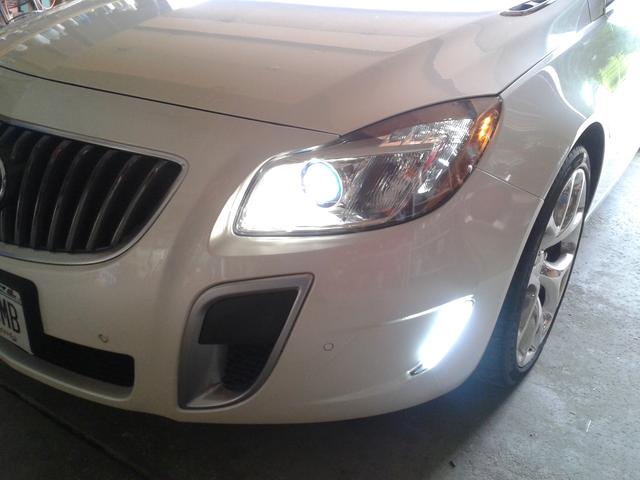

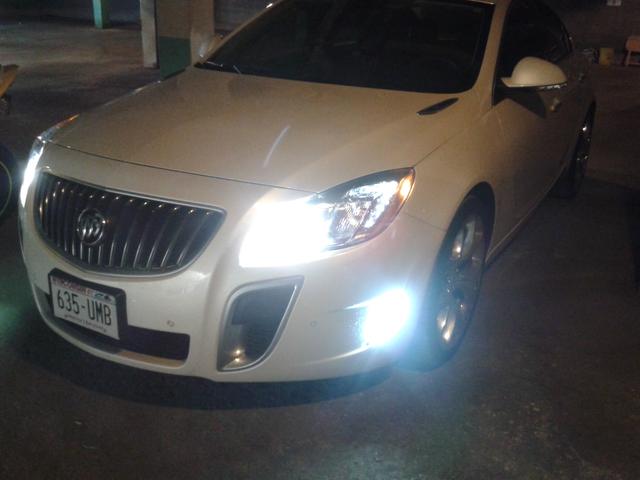

DRLs low, HIDs on

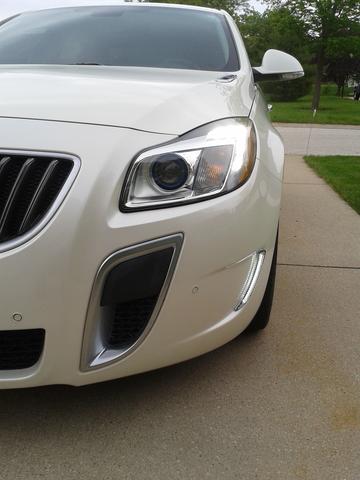

Different angle

DRLs high, HIDs off

Different angle

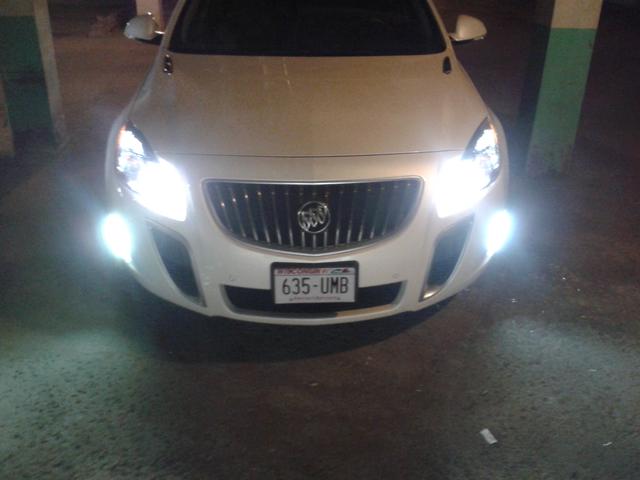

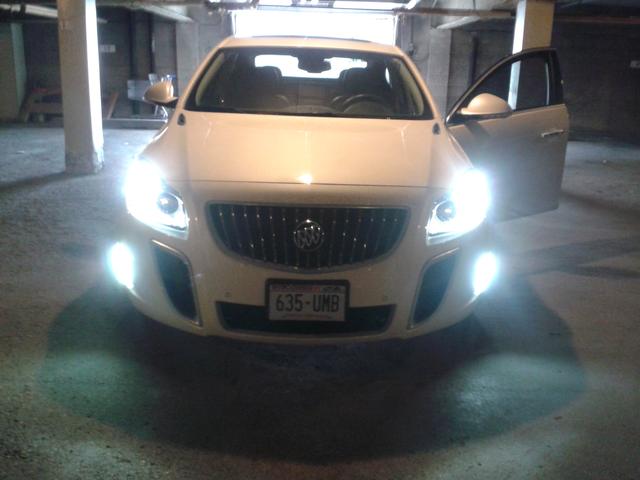

DRLs high, HIDs off in garage

DRLs low, HIDs on in garage

Different angle



Here are two pictures of the yellow. Once again, I opted out of this, I did not want three turn signals (mirrors, headlamp, and fogs).




Final Thoughts
The LED color is almost EXACTLY like the color of the DRL LEDs, which is very nice. The fitment of the lights inside the indents is not exact, they may sit a little bit out, but it is not very noticeable. I will more than likely repaint the chrome bezels of the light to match the flat silver of the air intakes. Overall I am very happy with the turnout, I think they look great.


TprGTO

Full Member
921
3
0
MA
Buick Ownership
2012 Buick Regal GS
Awesome detailed writeup. Thanks for posting pictures. Looks fantastic.


TprGTO

Full Member
921
3
0
MA
Buick Ownership
2012 Buick Regal GS
Did you order the Ebay kit or the other?
______________________________


wierz11

Full Member
796
9
0
AZ
Buick Ownership
E92 M3, E46 330, E24 635CSi
I figured since there was one sheet of paper in all Chinese, a detailed English write up was needed :rolleyes: I ordered the ebay kit, I linked it in the first post


ImminentFailure

Full Member
135
0
16
Troy, MI
Buick Ownership
Regal 11
With that little notch cut into the bumper on the inboard side of the vent vs the backside It's almost like they meant to put LED strips there at some time. The opening seems perfectly positioned for a small harness / connector.

Awesome write up. Rep4real.
______________________________


wierz11

Full Member
796
9
0
AZ
Buick Ownership
E92 M3, E46 330, E24 635CSi
With that little notch cut into the bumper on the inboard side of the vent vs the backside It's almost like they meant to put LED strips there at some time. The opening seems perfectly positioned for a small harness / connector.

Awesome write up. Rep4real.

Thanks! And I totally understand, that notch is where I drilled the hole for the wires, and I had thought that it was almost placed there on purpose.


NormT

Turbo-4 power!
1,535
182
63
OH-IO
Buick Ownership
2018 TourX
With that little notch cut into the bumper on the inboard side of the vent vs the backside It's almost like they meant to put LED strips there at some time. The opening seems perfectly positioned for a small harness / connector.

Awesome write up. Rep4real.

Especially the way the light reflects off the horizontal crease at the top. My Verano is jealous. :) Very nice write up.


VehicleCityGS

Full Member
247
2
0
Buick Ownership
Buick
Great write up! And they looks awesome! One question, is hot glue the recommended way of install or the best method you found?
______________________________


wierz11

Full Member
796
9
0
AZ
Buick Ownership
E92 M3, E46 330, E24 635CSi
Thanks everyone!

Great write up! And they looks awesome! One question, is hot glue the recommended way of install or the best method you found?

Honestly, hot glue or silicone has always been my go-to for the most permanent non-permanent solutions (silicone more than hot glue), but I did not have any silicone on hand during the install. I may go back and take the hot glue off and replace it with silicone, but for now the hot glue should hold up just fine. I used high temperature glue, and with a melting point of 380°F, it should be fine situated where it is.


TheGS

Full Member
287
3
18
Michigan
Buick Ownership
2012 Regall GS
A little hard to tell from the pics, is there two black boxes or just one?

Did you have to remove anything from the engine bay to feed the wires?

Thanks for posting the details.


Lancer-AM

Full Member
237
1
0
Austin, TX
Buick Ownership
Buick Regal CXL Turbo T07
The GS bumper looks great, and these really just make it better.
______________________________


TprGTO

Full Member
921
3
0
MA
Buick Ownership
2012 Buick Regal GS
OP, could you post a closeup picture of the installation without the lights turned on in the daylight?


johnnyGS

Full Member
159
0
0
Buick Ownership
2013 Regal GS
Wierz where do you live in Wisconsin close to ill if so how would you like to install them on my GS for $$$
